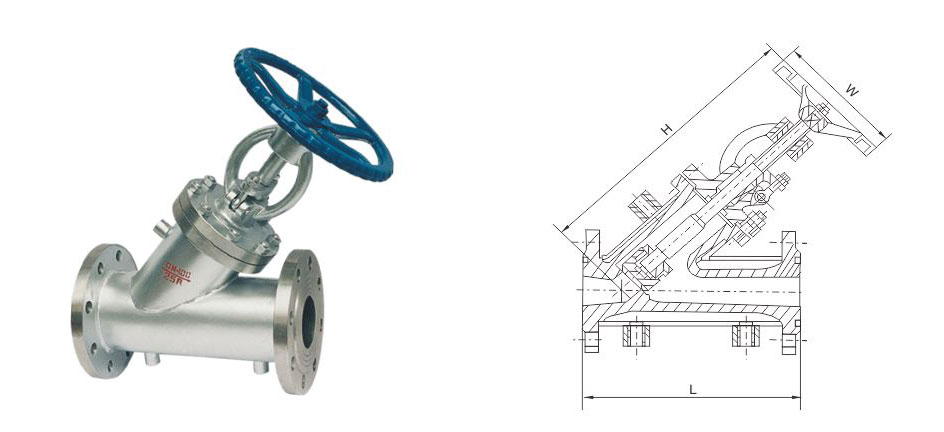

BJ45W直流夹套保温截止阀的保温夹套焊装于阀门的两法兰之间，阀门的侧面、底部设置有保温夹套的两个连接口。直流保温截止阀特别适用于化工、化肥行业的管路上，夹套内涵入蒸汽能防止介质结晶。上海一环生产的保温截止阀被广泛应用于石油、化工、冶金、制药等各类系统中，以输送常温下会凝固的高粘度介质。保温截止阀的设计制造按GB12234-89 GB12234-89；结构长度按GB12221-89 GB12221-89；保温截止阀法兰尺寸按JB/T79-94 JB/779-94；阀门检查和试验按GB13927。

零件名称LTEMZG1CR18NI9TI系列ZGOOCR18NI10系列ZG1Cr18Ni12MO2Ti系列ZGOOCR17NI14MO2系列WCB系列

阀体/阀盖世BODY/CAPZG1CR18NI9TIZGOOCR18NI10ZG1Cr18Ni12MO2TiZGOOCR17NI14MO2WCB

闸板WEDGEZG1CR18NI9TIZGOOCR18NI10ZG1Cr18Ni12MO2TiZGOOCR17NI14MO21Cr13

阀杆STEM1CR18NI9TI00cr18ni101CR18NI12MOTIOOCR17NI14MO1Cr13

填料PACKINGPTFE纺织PTFE纺织PTFE纺织PTFE纺织石墨 GRAPHITE

垫片GASKET304L+PTFE304L+PTFE316L+PTFE316L+PTFE石墨+304 GRAPHITE+304

压盖GLAND FLANGEZG1CR18NI9TIZG00CR18ni10ZG1Cr18Ni12MO2TiZGOOCR17NI14MO2WCB

填料压环 STUFFING RING1CR18NI9TI00CR18NI101Cr18NI12MOTIOOCR17NI14MO1Cr13

螺栓BOLT1cr17ni21CR17NI21Cr17NI21Cr17Ni235CrMoA

螺母NUT1cr18ni9ti1CR18NI9TI1Cr18NI9ti1Cr18NI9ti45

PN(MPa)DN(mm)尺寸(mm)重量

kg

LL1H3-GDD1D2bZ-φdDo

2.515200502101/21057555164--φ1412014

20220502401/21158565164--φ1414018

25220502501/213510078184--φ1816025

32250552701/214511085184--φ1816030

40270603101/2160125100204--φ1816036

50300603303/4180145120228-φ1824040

65350653603/4195160135228-φ1824054

80380704003/4230190160248-φ2328070

100430754801270220188288-φ25320100

125490805501300250218308-φ25360130

1505709062013302802483212-φ25360170

2006909575013953403023612-φ25400250

4.015200502101/21057555164--φ1412014

20220502401/21158565164--φ1414018

25220502501/213510078184--φ1816025

32250552701/214511085184--φ1816033

40270603101/2160125100204--φ1816041

50300603303/4180145120228-φ1824045

65350653603/4192160135228-φ1824062

80380704003/4230190160248-φ2328080

100430754801270220188288-φ25320100

125490805501300250218308-φ25360130

1505709062013502952583412-φ30360185

2006909575014153553154012-φ34400268
